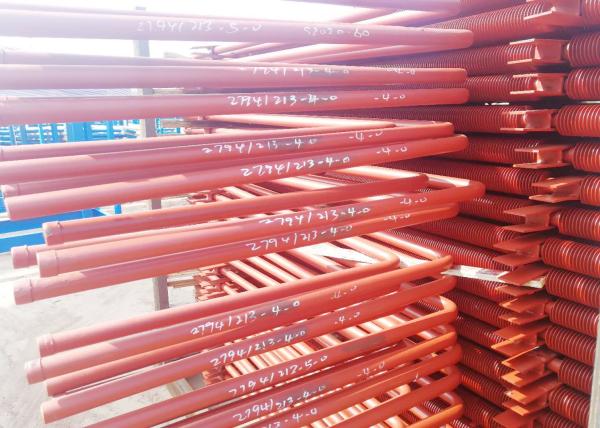

Super Heater Boiler Steel Tube Alloy ASTM A213 ASME SA213 T1 T11 T12

ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Super Heater Boiler Steel Tube Alloy ASTM A213 ASME SA213 T1 T11 T12

Brand Name : HDT

Model Number : ASME SA 213T11

Certification : API/CE / ISO /TUV

Place of Origin : China,Jiangsu

MOQ : 5T

Payment Terms : L/C, T/T, Western Union

Delivery Time : 60-75days

Packaging Details : seaworthy packing for exporting

Price : 800 - 9000 USD / ton

Supply Ability : About 10000 ton / month

Standard : API/CE / ISO /TUV

Product Name : Carbon Steel Pipe Boiler Tube for Heat Exchanger

Application : Industrial Boiler

Surface Treatment : Dry Varnish Coated

Contact Now

HDT supply huge qty of Cr-Mo Alloy seamless pipe and tube , and export more than 35 countries . Our alloy seamless tube be width used in boiler and heating.

HDT controls the entire manufacturing process from raw material to finished products, Inspection points are localed in the manufacturing process to ensure all products meet all requirements. In such quality control system, faults are detected at the earliest possible stage of the production process in order to eliminate the risk of rejection at final inspection. We have made continuous efforts to reduce the problem throughout total quality assurance system including traceability control, HDT not only inspect by ourself , also through TPI like BV, SGS, DNV, ABS, MOODY, IBR, so that today the quality of our productsis clearly recognized by our client.

Carbon Chromiun Low Temperature Stainless Steel Duplex Copper& Bronze Titanium Ni-Alloy
SA178-A SA213-T1 SA333-Gr.1 SA213 TP316L A789-S31803 SB111-C70600 SB338-GR.1 SB163 NO2200
SA178-C SA213-T11 SA333-Gr.3 SA249 TP316H A789-S32205 SB111-C71500 SB338-GR.2 SB167 NO2201
SA179 SA213-T12 SA333-Gr.6 SA268 TP316Ti A789-S32750 SB111-C71640 SB338-GR.5 SB444 NO8020
SA192 SA213-T22 SA333-Gr.7 SA269 TP316LN A789-S32760 SB111-C68700 SB338-GR.7 SB514 NO6022
SA209-T1 SA213-T5 SA333-Gr.8 SA376 TP321 A789-S32707 SB111-C44300 SB338-GR.9 SB619 N10276
SA209-T1a SA213-T9 SA334-Gr.1 TP304 TP321H A789-S32304   SB338-GR.12 SB622 NO4400
SA209-T1b SA213-T91 SA334-Gr.3 TP304L TP347 A789-S31500     SB626 NO6600
SA210-A1   SA334-Gr.6 TP304H TP347H S31254     SB674 NO6601
SA210-C   SA334-Gr.7 TP304N TP405 254MA     SB677 NO6625
SA214   SA334-Gr.8 TP310H TP409 17-4PH     SB704 NO690
SA513 MT 1010     TP310S TP410 17-7PH     SB705 NO8800
SA513 MT 1015     TP309S TP430 15-7PH     N1001 NO8810
SA513 MT 1020     TP317 TP439       N10665 NO8811
      TP317L TP444       N10675 NO8825
      TP348 TP446       TP904L
      TP347HFG
Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter   BWG
25 22 20 18 16 14 12 10
  Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch   Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429
12.7 1/2   0.214 0.263 0.356 0.457 0.612 0.754
15.88 5/8   0.271 0.334 0.455 0.588 0.796 0.995
19.05 3/4   0.327 0.405 0.553 0.729 0.895 1.236
25.4 1   0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4   0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2   0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4       1.342 1.774 2.244 2.894 3.5
50.8 2       1.549 2.034 2.574 3.334 4.03
63.5 2 1/2       1.949 2.554 3.244 4.214 5.13
76.2 3       2.345 3.084 3.914 5.094 6.19
88.9 3 1/2       2.729 3.609 4.584 5.974 7.27
101.6 4         4.134 5.254 6.854 8.35
114.3 4 1/2         4.654 5.924 7.734 9.43

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties

Grade Chemical Composition%
C Si Mn P, S Max Cr Mo Ni Max V Al Max
T2 0.10~0.20 0.10~0.30 0.30~0.61 0.025 0.50~0.81 0.44~0.65
T11 0.05~0.15 0.50~1.00 0.30~0.60 0.025 1.00~1.50 0.44~0.65
T12 0.05~0.15 Max 0.5 0.30~0.61 0.025 0.80~1.25 0.44~0.65
T22 0.05~0.15 Max 0.5 0.30~0.60 0.025 1.90~2.60 0.87~1.13
T91 0.07~0.14 0.20~0.50 0.30~0.60 0.02 8.0~9.5 0.85~1.05 0.4 0.18~0.25 0.015
T92 0.07~0.13 Max 0.5 0.30~0.60 0.02 8.5~9.5 0.30~0.60 0.4 0.15~0.25 0.015
Grade Chemical Composition% Mechanical Properties
W B Nb N T. S Y. P Elongation Hardness
T2 ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T11 ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T12 ≥ 415MPa ≥ 220MPa ≥ 30% 163HBW(85HRB)
T22 ≥ 415MPa ≥ 205MPa ≥ 30% 163HBW(85HRB)
T91 0.06~0.10 0.03~0.07 ≥ 585MPa ≥ 415MPa ≥ 20% 250HBW(25HRB)
T92 1.50~2.00 0.001~0.006 0.04~0.09 0.03~0.07 ≥ 620MPa ≥ 440MPa ≥ 20% 250HBW(25HRB)

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm
  • SA213 T11 Alloy Steel Tube use in Petrochemical Industry
  • SA213 T11 Alloy Steel Tube use in Chemical Industry
  • SA213 T11 Alloy Steel Tube use in Nuclear Power Plant Industry
  • SA213 T11 Alloy Steel Tube use in Oil and Gas Industry
  • SA213 T11 Alloy Steel Tube use in Research & Development
  • SA213 T11 Alloy Steel Tube use in Mega Projects & Defense & Development Industries
  • SA213 T11 Alloy Steel Tube use in Pulp & Paper Indusry
